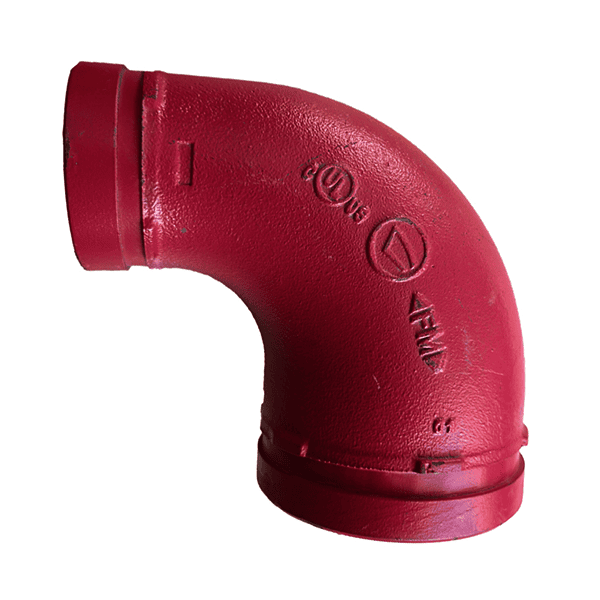

Grooved 90° Elbow
  • Grooved 90° Elbow
  • Grooved 90° Elbow
    • Request a Quote

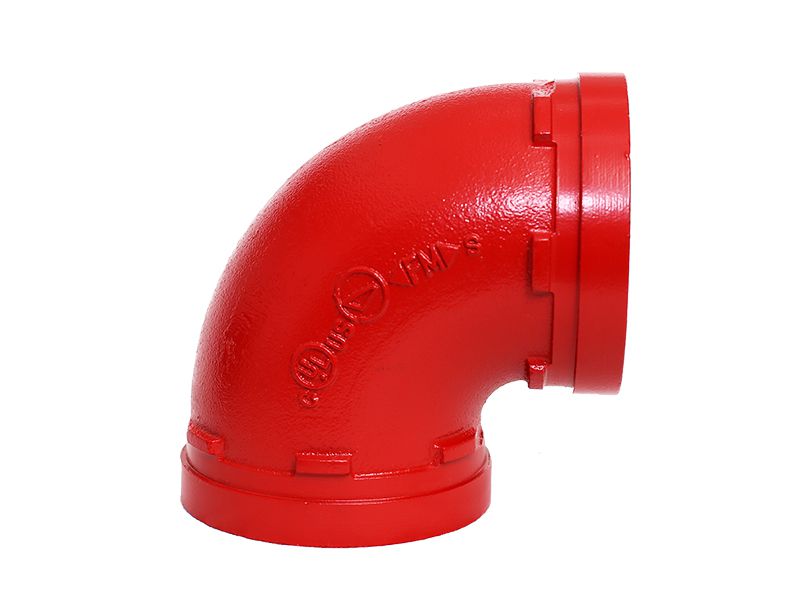

    Grooved 90°elbow is an elbow fitting that is used for connecting two pipes with the same size to make the pipeline turn 90 degrees. It provides a change in flow direction and facilitates the adaptation of sizes or components.

    Recommended Applications

    Grooved 90° elbow is suitable for drinking water systems, indoor heating systems, sewage treatment systems, oil and gas transmission pipeline systems, etc.

    Certification
    Certification
    Certification
    Certification
    Key Specifications
    • Available sizes
      Available sizes: 1 1/4×1 inch~8×6 inch |DN32×25~DN200×150
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM / UL /CE certified
    • Coating
      Coating: epoxy /galvanized
    • Color
      Color: red/orange/white etc.

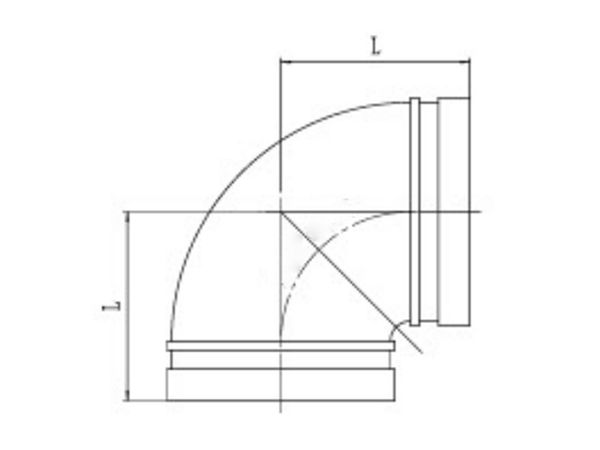

    Specifications
    Nominal Size Pipe OD Dimensions
    mm/in mm/in mm
    25 / 1 33.7 / 1.327 57 / 2.24
    32 / 1 1/4 42.4 / 1.669 60 / 2.36
    40 / 1 1/2 48.3 / 1.9 60 / 2.36
    50 / 2 60.3 / 2.375 70 / 2.76
    65 / 2 1/2 73 / 2.875 76 / 2.99
    65 / 2 1/2 76.1 / 3 76 / 2.99
    80 / 3 88.9 / 3.5 80 / 3.15
    100 / 4 108 / 4.25 102 / 4.02
    100 / 4 114.3 / 4.5 96 / 3.78
    125 / 5 133 / 5.25 121 / 4.76
    125 / 5 139.7 / 5.5 121 / 4.76
    125 / 5 141.3 / 5.563 121 / 4.76
    150 / 6 159 / 6.25 140 / 5.51
    150 / 6 165.1 / 6.5 122 / 4.8
    150 / 6 168.3 / 6.625 140 / 5.51
    200 / 8 219.1 / 8.625 150 / 5.91
    250 / 10 273 / 10.75 215 / 8.46
    300 / 12 323.9 / 12.75 245 / 9.65
