Grooved Pipe Fittings for Construction Project

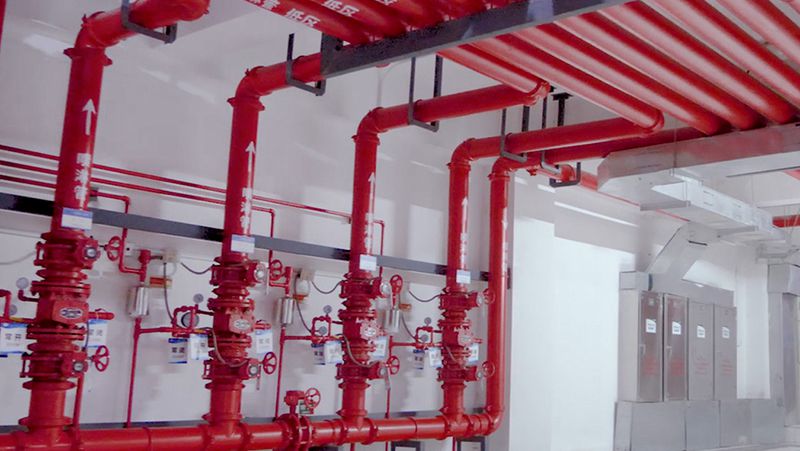

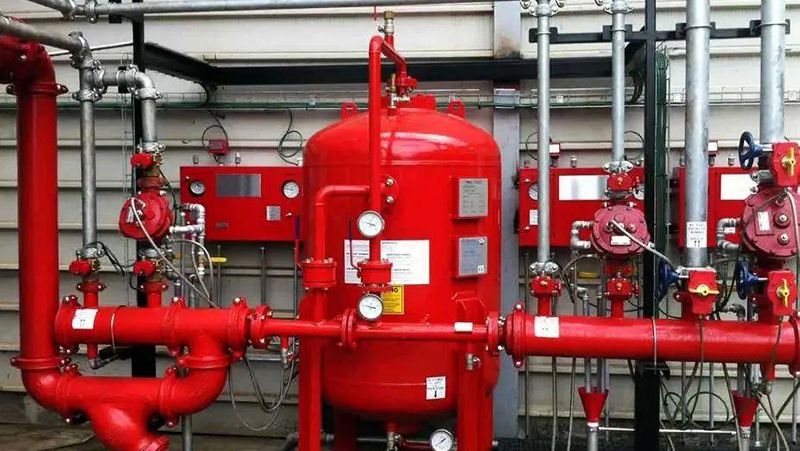

Grooved pipe fittings are widely used in construction projects for connecting water supply, drainage, HVAC, and other systems. These fittings offer several advantages, such as easy installation, convenient removal, and flexible adjustment, which significantly shortens the construction time and enhances the work efficiency.

Advantages

Shortens construction periods and reduces overall project costs.
Enables easy expansion of pipeline systems in the future.
Minimizes damage to pipelines caused by thermal expansion, contraction, or geological changes during operation.
Lowers the maintenance costs of pipeline systems as there is no need for cutting or re-welding.

Recommended Pipe Couplings & Fittings

1. View More
2. Angle-Pad Rigid Coupling Angle-pad rigid coupling is a standard rigid coupling with an angled bolt-pads design, suitable for medium-pressure piping services. This coupling is designed to achieve angular and axial stiffness by firmly clamping in the groove base.

  Available sizes: 1~12 inch |DN25~DN300

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More
2. Grooved Concentric Reducer Grooved concentric reducers are cone-shaped pipe fittings with grooved connections that reduce the size of a pipeline in a symmetrical and concentric manner, while keeping the centerlines of the two pipes aligned.

  Available sizes: 1 1/4×1 inch~12×10 inch |DN32×25~DN300×250

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More

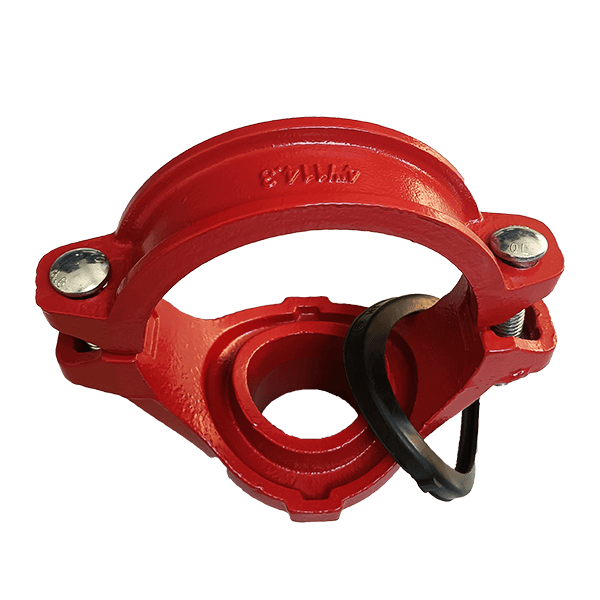

2. Mechanical Tee Grooved Outlet Mechanical tee grooved outlet consist of upper and lower plates, a gasket, and bolts/nuts, providing a simple and fast method for branch connection.

  Available sizes: 2×1 inch~10×4 inch |DN50×25~DN250×65

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More
2. Grooved Equal Tee The grooved ends are connected to the pipe using couplings for fluid distribution to provide the change in direction, and adapt sizes or components.

  Available sizes: 1 inch~12 inch |DN25~DN300

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More
2. Grooved Equal Cross Grooved equal cross features convenient and quick connections utilizing a coupling. Simply insert the pipe into the coupling and tighten the bolts.

  Available sizes: 2 inch~8 inch |DN50~DN200

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More

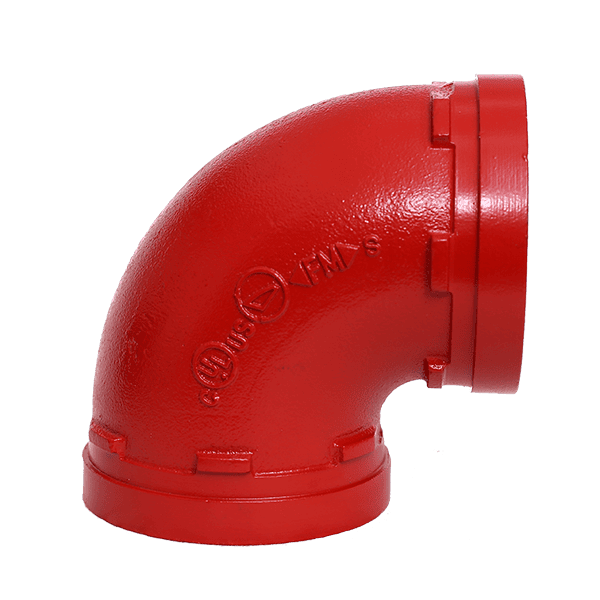

2. Grooved 90° Elbow Grooved 90°elbow is an elbow fitting that is used for connecting two pipes with the same size to make the pipeline turn 90 degrees. It provides a change in flow direction and facilitates the adaptation of sizes or components.

  Available sizes: 1 1/4×1 inch~8×6 inch |DN32×25~DN200×150

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More
2. Grooved Adaptor Flange A grooved adaptor flange is an adjustable connecting flange that functions similarly to an expansion joint. It consists of two flange discs that are individually fixed, with a flange gasket placed between them.

  Available sizes: 1 inch~12 inch |DN25~DN300

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More
2. Grooved End Cap A grooved end cap is specifically designed to be fitted onto the end of a pipe using a grooved connection. It serves as an isolation or cutoff device to block the pipeline and form liquid or gas tight seal.

  Available sizes: 1 inch~12 inch |DN25~DN600

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
