What is the role of pipeline couplings in the fire protection industry?

Couplings: a small part with a crucial role in fire protection

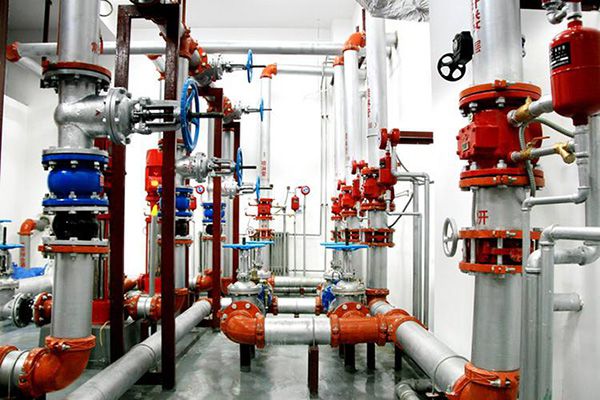

Grooved couplings play a critical role in the fire protection industry, as most sprinkler pipe connections require rigid joints. However, in certain instances, such as seismic design requirements, greater flexibility is needed to prevent damage during earthquakes. Flexible couplings are the solution in such cases.
Qualified fire protection system planning is necessary to ensure the safety of fire protection systems and must be conducted in accordance with local regulations. Determining the Seismic Design Category (SDC) of a building is essential to determine whether special equipment is necessary for seismic design.

HT Casting offers a wide range of pipe fittings to meet your needs

Both rigid grooved couplings and fittings are available in stock and online.
For custom-designed flexible couplings, please contact us for special orders.

Recommended Pipe Couplings & Fittings

1. View More
2. Grooved Flexible Coupling Grooved flexible coupling is a pipe fitting used for connecting pipes in a piping system. Flex couplings offer flexibility, allowing for axial displacement and angular deflection of the connected pipes, making the pipeline system more flexible.

  Available sizes: 1~12 inch |DN25~DN300

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More
2. Grooved Concentric Reducer Grooved concentric reducers are cone-shaped pipe fittings with grooved connections that reduce the size of a pipeline in a symmetrical and concentric manner, while keeping the centerlines of the two pipes aligned.

  Available sizes: 1 1/4×1 inch~12×10 inch |DN32×25~DN300×250

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More
2. Mechanical Tee Grooved Outlet Mechanical tee grooved outlet consist of upper and lower plates, a gasket, and bolts/nuts, providing a simple and fast method for branch connection.

  Available sizes: 2×1 inch~10×4 inch |DN50×25~DN250×65

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More
2. Grooved Equal Tee The grooved ends are connected to the pipe using couplings for fluid distribution to provide the change in direction, and adapt sizes or components.

  Available sizes: 1 inch~12 inch |DN25~DN300

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More
2. Grooved Equal Cross Grooved equal cross features convenient and quick connections utilizing a coupling. Simply insert the pipe into the coupling and tighten the bolts.

  Available sizes: 2 inch~8 inch |DN50~DN200

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More
2. Grooved 90° Elbow Grooved 90°elbow is an elbow fitting that is used for connecting two pipes with the same size to make the pipeline turn 90 degrees. It provides a change in flow direction and facilitates the adaptation of sizes or components.

  Available sizes: 1 1/4×1 inch~8×6 inch |DN32×25~DN200×150

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More
2. Grooved Adaptor Flange A grooved adaptor flange is an adjustable connecting flange that functions similarly to an expansion joint. It consists of two flange discs that are individually fixed, with a flange gasket placed between them.

  Available sizes: 1 inch~12 inch |DN25~DN300

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More
2. Grooved End Cap A grooved end cap is specifically designed to be fitted onto the end of a pipe using a grooved connection. It serves as an isolation or cutoff device to block the pipeline and form liquid or gas tight seal.

  Available sizes: 1 inch~12 inch |DN25~DN600

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
