Grooved Pipe Fittings for Chemical Processing Project

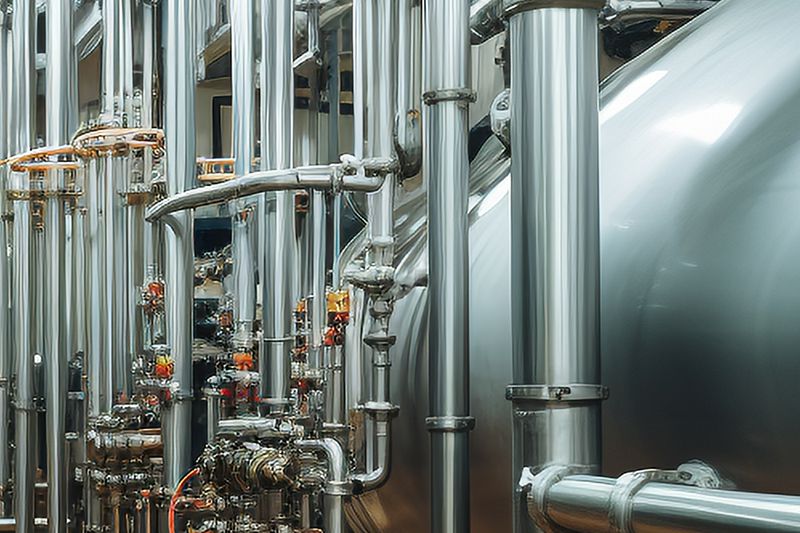

Grooved piping fittings - A better solution for chemical transportation pipelines

By using the grooved piping system, engineers, contractors, and managers involved in chemical transportation projects can benefit from mechanical pipe connections that offer advantages such as reduced labor costs, shortened timelines, improved safety, and ease of maintenance.

Advantages of grooved piping system, installed using flame-free joining methods

Provides a reliable, faster, and more cost-effective solution for both new construction projects and renovations and repairs of existing pipelines.
Grooved fittings ensure the stable operation of chemical vapor pipelines.
Grooved fittings for connecting steam and chemical liquid transportation pipelines provide better sealing to reduce the risk of leaks.
Grooved fittings effectively mitigate damages caused by various high and low temperatures.
Seismic resistance: grooved piping system withstands vibrations and impacts in industrial environments.

Recommended Pipe Couplings & Fittings

1. View More
2. Grooved Rigid Coupling Grooved rigid coupling is a pipe fitting used to connect two pipes or equipment in various applications. It offers easy and fast installation without the need for any special tools or skills.

  Available sizes: 1~12 inch | DN25~DN300

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More
2. Grooved Concentric Reducer Grooved concentric reducers are cone-shaped pipe fittings with grooved connections that reduce the size of a pipeline in a symmetrical and concentric manner, while keeping the centerlines of the two pipes aligned.

  Available sizes: 1 1/4×1 inch~12×10 inch |DN32×25~DN300×250

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More
2. Mechanical Tee Grooved Outlet Mechanical tee grooved outlet consist of upper and lower plates, a gasket, and bolts/nuts, providing a simple and fast method for branch connection.

  Available sizes: 2×1 inch~10×4 inch |DN50×25~DN250×65

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More
2. Grooved Equal Tee The grooved ends are connected to the pipe using couplings for fluid distribution to provide the change in direction, and adapt sizes or components.

  Available sizes: 1 inch~12 inch |DN25~DN300

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More
2. Grooved Equal Cross Grooved equal cross features convenient and quick connections utilizing a coupling. Simply insert the pipe into the coupling and tighten the bolts.

  Available sizes: 2 inch~8 inch |DN50~DN200

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More
2. Grooved 90° Elbow Grooved 90°elbow is an elbow fitting that is used for connecting two pipes with the same size to make the pipeline turn 90 degrees. It provides a change in flow direction and facilitates the adaptation of sizes or components.

  Available sizes: 1 1/4×1 inch~8×6 inch |DN32×25~DN200×150

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More
2. Grooved Adaptor Flange A grooved adaptor flange is an adjustable connecting flange that functions similarly to an expansion joint. It consists of two flange discs that are individually fixed, with a flange gasket placed between them.

  Available sizes: 1 inch~12 inch |DN25~DN300

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More
2. Grooved End Cap A grooved end cap is specifically designed to be fitted onto the end of a pipe using a grooved connection. It serves as an isolation or cutoff device to block the pipeline and form liquid or gas tight seal.

  Available sizes: 1 inch~12 inch |DN25~DN600

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
