Grooved Concentric Reducer
  • Grooved Concentric Reducer
  • Grooved Concentric Reducer
    • Request a Quote

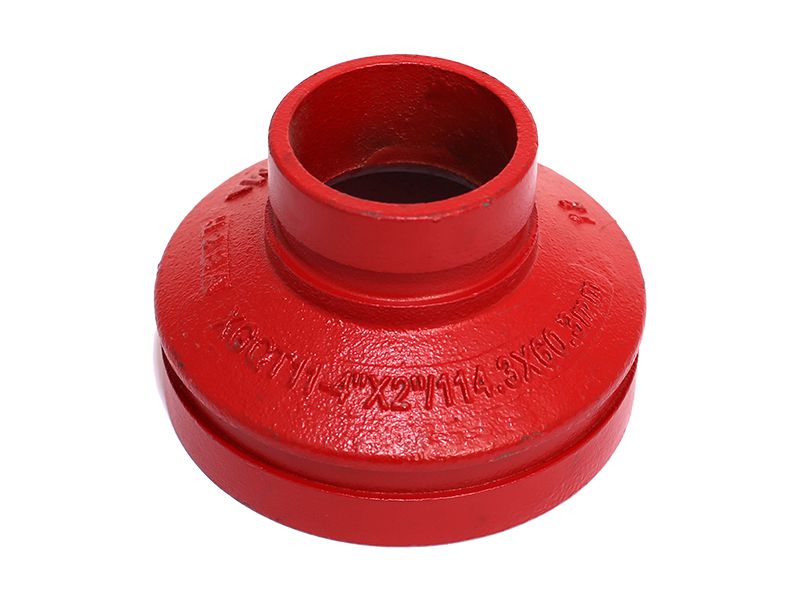

    Grooved concentric reducers are cone-shaped pipe fittings with grooved connections that reduce the size of a pipeline in a symmetrical and concentric manner, while keeping the centerlines of the two pipes aligned.

    Features
    • Made of materials such as ductile iron, stainless steel, or carbon steel, providing high wear resistance and corrosion resistance.
    • Available in various sizes and pressure ratings to accommodate different applications.
    • Enables to join the two pipes of different diameters.
    Recommended Applications

    Grooved concentric reducer is commonly used in industrial and commercial piping systems, such as gas pipelines, water supply pipelines, etc., where a reduction of the pipe size is required to accommodate changes in flow or pressure.

    Certification
    Certification
    Certification
    Certification
    Key Specifications
    • Available sizes
      Available sizes: 1 1/4×1 inch~12×10 inch |DN32×25~DN300×250
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM/UL/CE certified
    • Coating
      Coating: epoxy/galvanized
    • Color
      Color: red/orange/white, etc.
    • Material
      Material: ductile iron, stainless steel or carbon steel

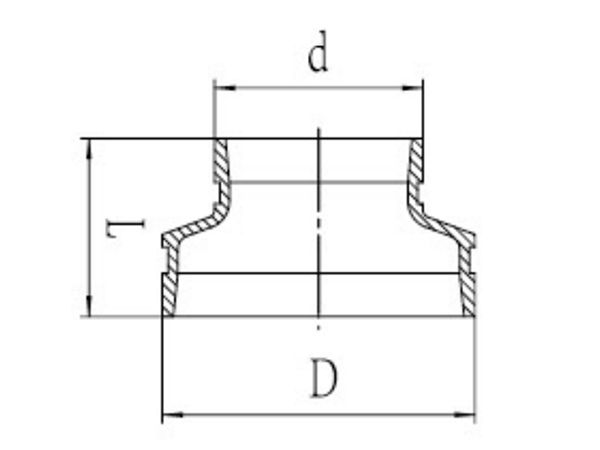

    Specifications
    Nominal Size Pipe OD Dimensions
    mm/in mm/in L mm/in
    32x25 / 1 1/4x1 42.4x33.7 / 1.660x1.315 64 / 2.51
    40x25 / 11/2x1 48.3x33.7 / 1.900x1.315 64 / 2.51
    40x32 / 1 1/2×1 1/4 48.3x42.4 / 1.900x1.660 64 / 2.51
    50x25 / 2x1 60.3 x 33.7 / 2.375x1.315 64 / 2.51
    50x32 / 2x1 1/4 60.3x42.4 / 2.375x1.660 64 / 2.51
    50x40 / 2x1 1/2 603x48.3 / 2.375x1.900 64 / 2.51
    65x25 / 2 1/2x1 73.0 x 33.7 / 2.875x1.315 64 / 2.51
    65x32 / 2 1/2x1 1/4 73.0x42.4 / 2.875x1.660 64 / 2.51
    65x40 / 2 1/2x1 1/2 73.0x48.3 / 2.875x1.900 64 / 2.51
    65x50 / 2 1/2x2 73.0 x 60.3 / 2.875x2.375 64 / 2.51
    65x32 / 2 1/2x1 1/4 76.1 x 42.4 / 3.000x1.660 64 / 2.51
    65x40 / 2 1/2x1 1/2 76.1x48.3 / 3.000x1.900 64 / 2.51
    65x50 / 2 1/2x2 76.1x60.3 / 3.000 x 2.375 64 / 2.51
    80x32 / 3x1 1/4 88.9x42.4 / 3.500x1.660 55 / 2.17
    80x40 / 3x1 1/2 88.9 x 48.3 / 3.500x1.900 55 / 2.17
    80x50 / 3x2 88.9 x 60.3 / 3.500x2.375 55 / 2.17
    80x65 / 3x2 1/2 88.9x76.1 / 3.500 x 3.000 55 / 2.17
    100x65 / 4x2 1/2 108.0 x 76.1 / 4.250 x 3.000 76 / 2.99
    100x80 / 4x3 108.0x88.9 / 4.250 x 3.500 76 / 2.99
    100x32 / 4x1 1/4 114.3x42.4 / 4.500x1.660 60 / 2.36
    100x40 / 4x1 1/2 114.3x48.3 / 4.500x1.900 60 / 2.36
    100x50 / 4x2 114.3x60.3 / 4.500x2.375 60 / 2.36
    100x65 / 4x2 1/2 114.3x76.1 / 4.500 x 3.000 60 / 2.36
    100x80 / 4x3 114.3x88.9 / 4.500 x 3.500 60 / 2.36
    125x50 / 5x2 139.7x60.3 / 5.500x2.375 65 / 2.56
    125x65 / 5x2 1/2 139.7x76.1 / 5.500 x 3.000 65 / 2.56
    125x80 / 5x3 139.7x88.9 / 5.500 x 3.500 65 / 2.56
    125x100 / 5x4 139.7x114.3 / 5.500 x 4.500 65 / 2.56
    150x50 / 6x2 159.0x60.3 / 6.250x2.375 70 / 2.76
    150x65 / 6x2 1/2 159.0x76.1 / 6.250 x 3.000 70 / 2.76
    150x80 / 6x3 159.0x88.9 / 6.250 x 3.500 70 / 2.76
    150x100 / 6x4 159.0x108.0 / 6.250 x 4.250 70 / 2.76
    150x100 / 6x4 159.0x114.3 / 6.250x4.500 70 / 2.76
    150x125 / 6x5 159.0x133.0 / 6.250x5.250 70 / 2.76
    150x125 / 6x5 159 0x139 7 / 6.250 x 5.500 70 / 2.76
    150x50 / 6x2 165.1 x60.3 / 6.500 x 2.375 102 / 4.01
    150x65 / 6x2 1/2 165.1x76.1 / 6.500 x 3.000 102 / 4.01
    150x80 / 6x3 165.1x88.9 / 6.500 x 3.500 102 / 4.01
    150x100 / 6x4 165.1x114.3 / 6.500x4.500 102 / 4.01
    150x125 / 6x5 165.1x139.7 / 6.500x5.500 102 / 4.01
    150x50 / 6x2 168.3 x 60.3 / 6.625x2.375 70 / 2.76
    150x65 / 6x2 1/2 168.3x76.1 / 6.625 x 3.000 70 / 2.76
    150x80 / 6x3 168.3 x 88.9 / 6.625x3.500 70 / 2.76
    150x100 / 6x4 168.3x114.3 / 6.625x4.500 70 / 2.76
    150x125 / 6x5 168.3x139.7 / 6.625 x 5.500 70 / 2.76
    200 x 50 / 8x2 219.1x60.3 / 8.625x2.375 85 / 3.35
    200x65 / 8x2 1/2 219.1x76.1 / 8 625x3.000 85 / 3.35
    200 x 80 / 8x3 219.1x88.9 / 8.625x3.500 85 / 3.35
    200x100 / 8x4 219.1 x 108.0 / 8.625x4.250 85 / 3.35
    200x100 / 8x4 219.1 x 114.3 / 8.625x4.500 85 / 3.35
    200x125 / 8x5 219.1 x 139.7 / 8.625 x 5.500 85 / 3.35
    200x150 / 8x6 219.1 x 159.0 / 8.625x6.250 85 / 3.35
    200x150 / 8x6 219.1 x 165.1 / 8.625x6.500 85 / 3.35
    200x150 / 8x6 219.1 x 168.3 / 8.625x6.625 85 / 3.35
    Where are grooved fittings used?
    Grooved fittings are mainly used in fire sprinkler piping systems, drinking water supply pipelines, oil extraction pipelines, and other applications, making them a versatile pip fitting.
    What are the advantages of using a grooved piping system?
    Using a grooved piping system can save installation costs, reduce pollution, and allow for quick installation, as well as minimizes vibration and noise for connected pipes.
