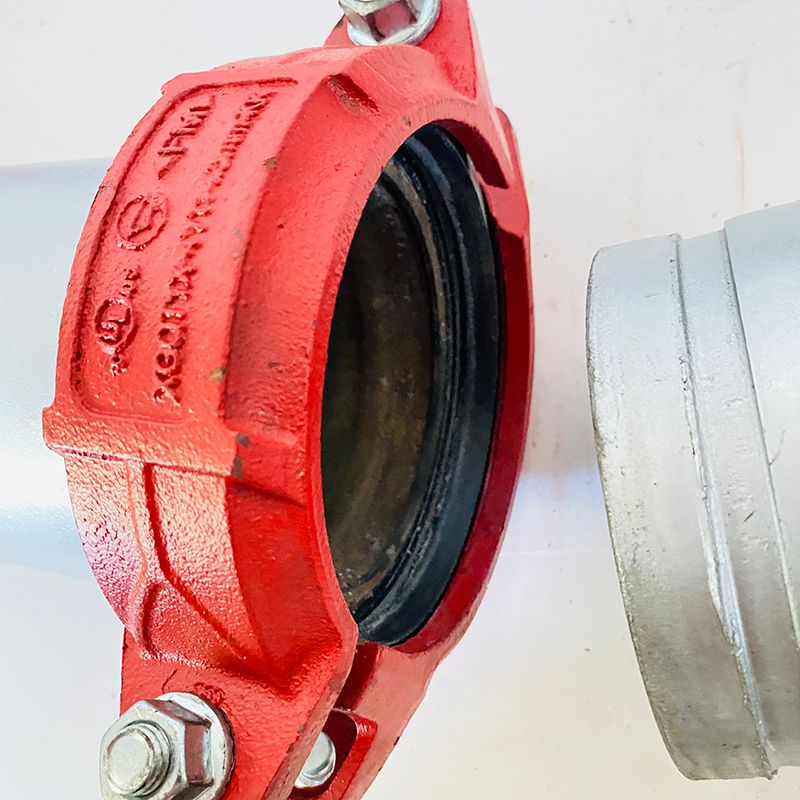

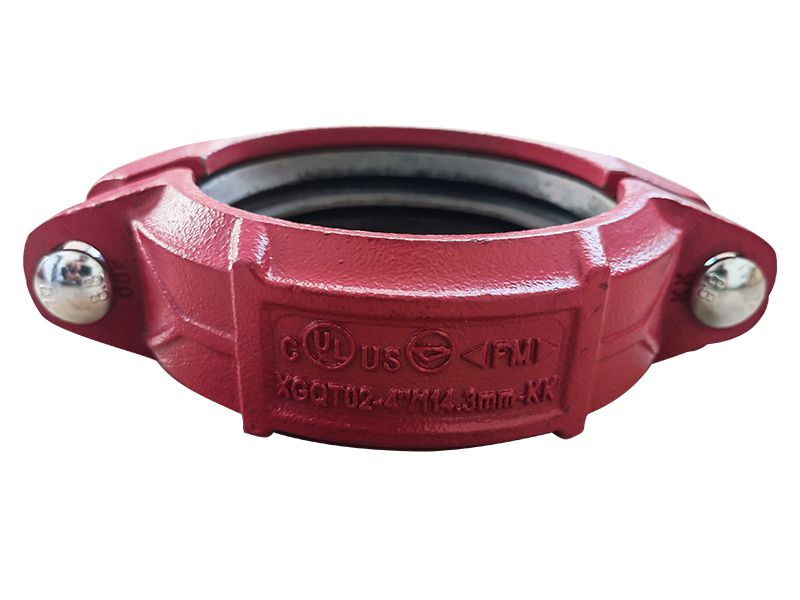

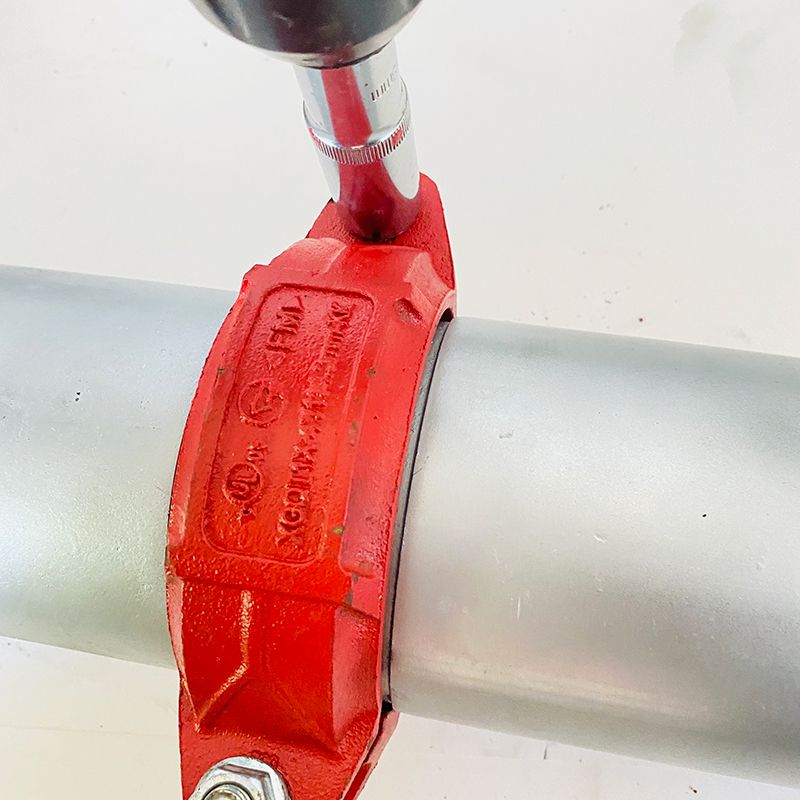

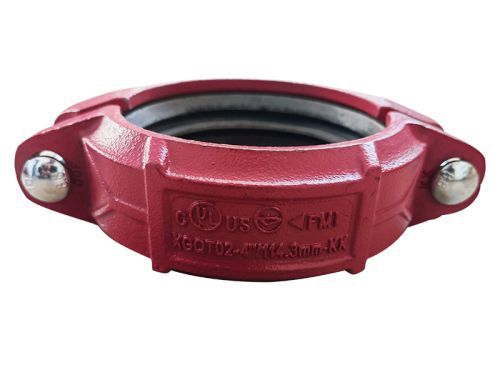

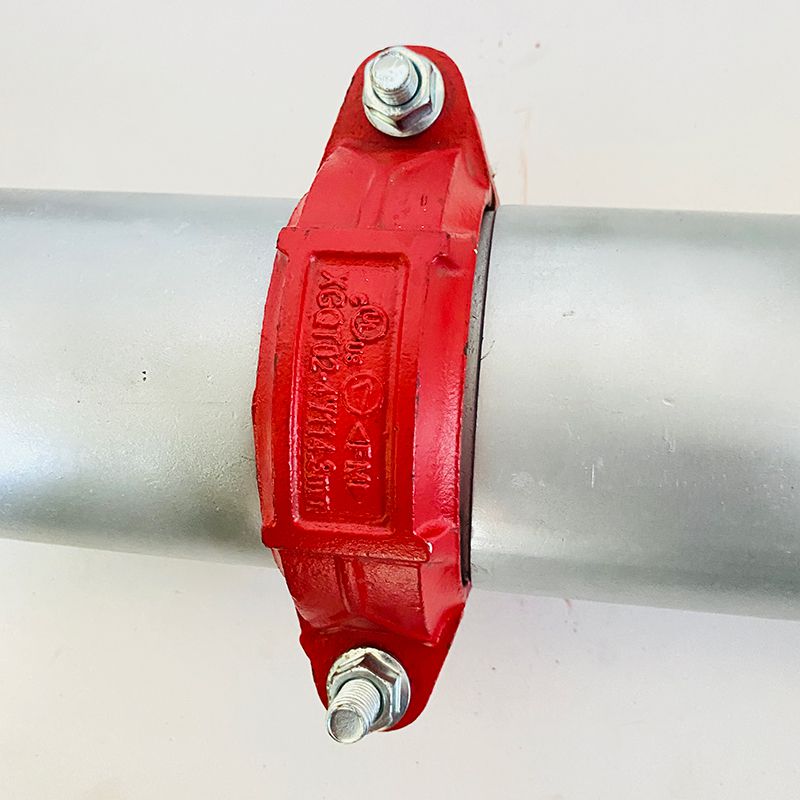

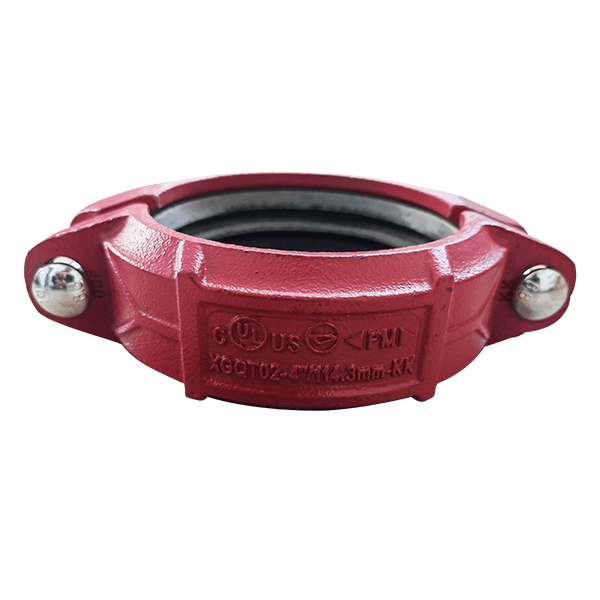

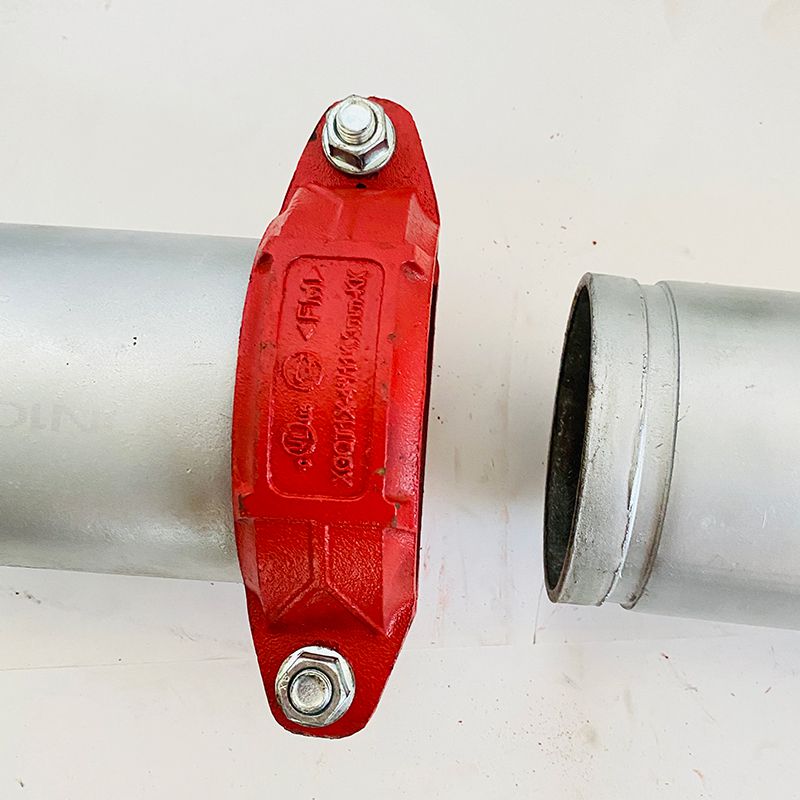

    Grooved one-stop coupling is a type of rigid quick-change pipe fitting. With a unique structural design, it eliminates the need to disassemble bolts, nuts, and gasket during installation. The coupling can be directly inserted into the pipe end and tightened with bolts and nuts.

    Features

    The installation efficiency is more than three times that of standard couplings. The unique structural design prevents the loss of bolts and nuts during the installation process.

    Recommended Applications

    Grooved one-stop coupling is suitable for various types of pipes, such as water supply, drainage, HVAC systems, and other pipelines.

    Certification
    Certification
    Certification
    Certification
    • Grooved One-Stop Coupling
    • Grooved One-Stop Coupling
    • Grooved One-Stop Coupling
    • Grooved One-Stop Coupling
    Key Specifications
    • Available sizes
      Available sizes: 1~12 inch |DN25~DN300
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM/UL/CE certified
    • Coating
      Coating: epoxy/galvanized
    • Color
      Color: red/orange/white, etc.
    • Material
      Material: ductile iron
    Specifications

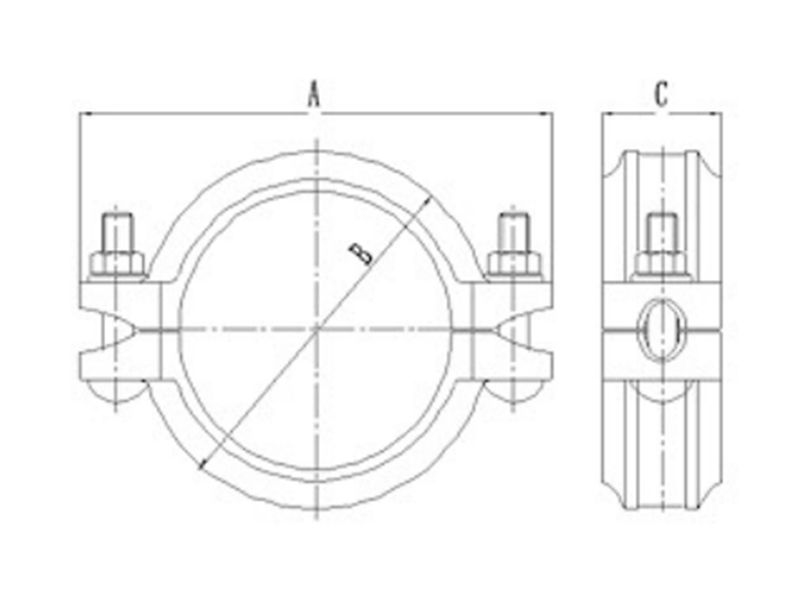

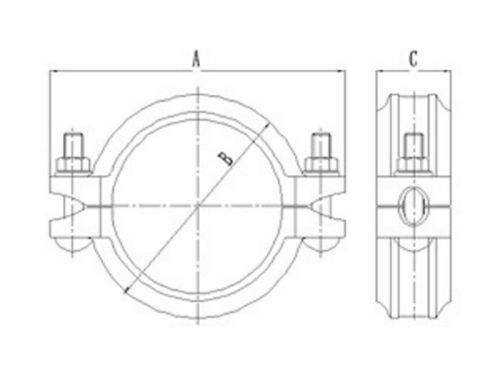

    Nominal Size Pipe OD Dimensions Bolt Size
    mm/in mm/in mm/in No.-Size / mm
    A / mm B / mm C / mm
    25 / 1 33.7 / 1.327 58 / 2.28 98 / 3.85 45 / 1.77 3/8*45-2
    32 / 1 1/4 42.4 / 1.669 68 / 2.68 106 / 4.17 45 / 1.77 3/8*45-2
    40 / 1 1/2 48.3 / 1.9 74 / 2.91 114 / 4.49 45 / 1.77 3/8*45-2
    50 / 2 60.3 / 2.375 86 / 3.39 128 / 5.04 45 / 1.77 3/8*55-2
    65 / 2 1/2 73 / 2.875 98 / 3.86 137 / 5.39 45 / 1.77 3/8*55-2
    65 / 2 1/2 76.1 / 3 103 / 4.06 141 / 5.55 45 / 1.77 3/8*55-2
    80 / 3 88.9 / 3.5 114 / 4.49 158 / 6.22 45 / 1.77 3/8*55-2
    100 / 4 114.3 / 4.5 143 / 5.63 192 / 7.56 49 / 1.93 1/2*65-2
    125 / 5 139.7 / 5.5 172 / 6.77 222 / 8.74 50 / 1.96 1/2*75-2
    150 / 6 165.1 / 6.5 199 / 7.83 252 / 9.92 50 / 1.96 1/2*75-2
    150 / 6 168.3 / 6.625 202 / 7.95 252 / 9.92 50 / 1.96 1/2*75-2
    216 / 8 216.1 8.51 258 / 10.16 322 / 12.67 58 / 2.28 5/8*95-2
    200 / 8 219.1 / 8.625 258 / 10.16 322 / 12.67 58 / 2.28 5/8*95-2
    267 / 8 267.2 / 10.52 313 / 12.32 390 / 15.35 58 / 2.28 3/4*110-2
    250 / 10 273 / 10.75 320 / 12.60 394 / 15.51 60 / 2.36 3/4*110-2
    318 / 12 318.3 / 12.53 369 / 14.53 450 / 17.72 58 / 2.28 3/4*120-2
    300 / 12 323.9 / 12.75 372 / 14.64 450 / 17.72 64 / 2.51 3/4*120-2
    What problems can be solved by grooved piping systems?
    Due to the advantages of grooved couplings, grooved piping systems can address complex installation issues, noise problems, and the negative effects of vibrations on pipelines. They also help reduce maintenance costs in the long run.
