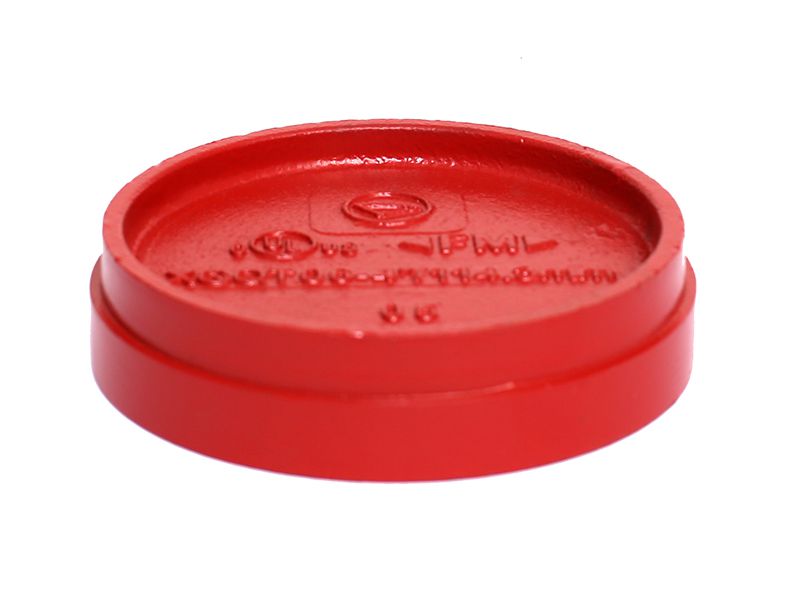

    A grooved end cap is specifically designed to be fitted onto the end of a pipe using a grooved connection. It serves as an isolation or cutoff device to block the pipeline and form liquid or gas tight seal.

    Certification
    Certification
    Certification
    Certification
    Key Specifications
    • Available sizes
      Available sizes: 1 inch~12 inch |DN25~DN600
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM / UL /CE certified
    • Coating
      Coating: epoxy / galvanized
    • Color
      Color: red/orange/white etc.
    Specifications

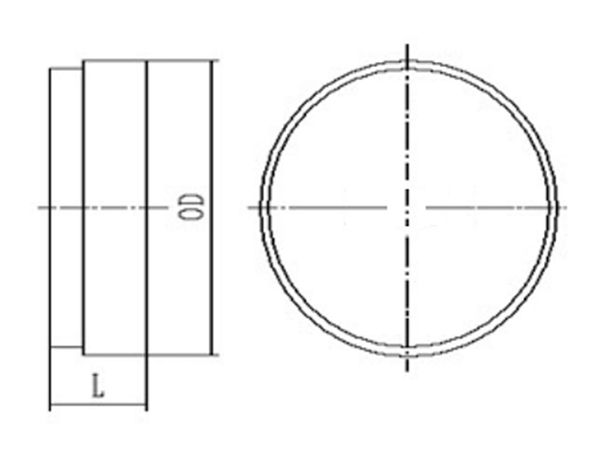

    Nominal Size Pipe OD Dimensions
    mm/in mm/in L mm/in
    25 / 1 33.7 / 1.327 25 / 0.98
    32 / 1 1/4 42.4 / 1.669 25 / 0.98
    40 / 1 1/2 48.3 / 1.9 25 / 0.98
    50 / 2 60.3 / 2.375 25 / 0.98
    65 / 2 1/2 73 / 2.875 25 / 0.98
    65 / 2 1/2 76.1 / 3 25 / 0.98
    80 / 3 88.9 / 3.5 25 / 0.98
    100 / 4 108 / 4.25 25 / 0.98
    100 / 4 114.3 / 4.5 26 / 1.02
    125 / 5 133 / 5.25 25 / 0.98
    125 / 5 139.7 / 5.5 26 / 1.02
    125 / 5 141.3 / 5.563 26 / 1.02
    150 / 6 159 / 6.25 26 / 1.02
    150 / 6 165.1 / 6.5 26 / 1.02
    150 / 6 168.3 / 6.625 26 / 1.02
    200 / 8 219.1 / 8.625 30 / 1.18
    250 / 10 273 / 10.75 32 / 1.26
