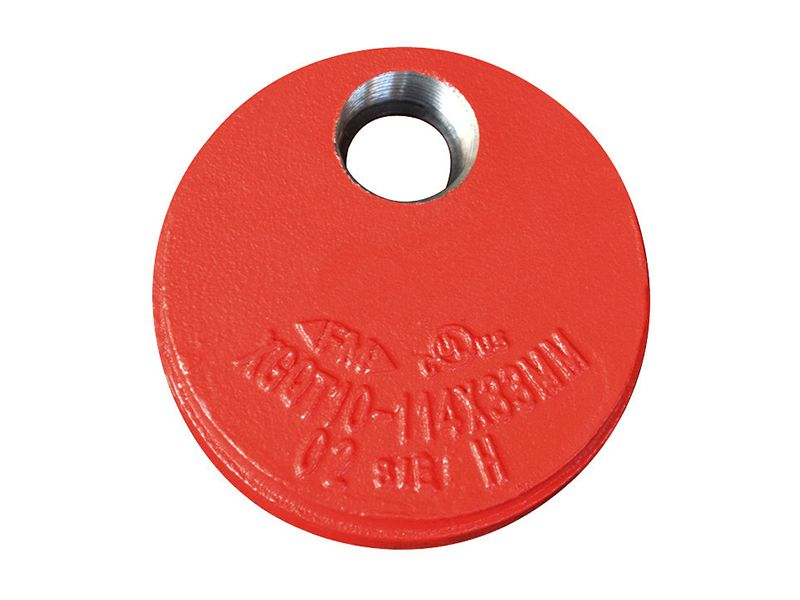

Grooved End Cap with Eccentric Hole
  • Grooved End Cap with Eccentric Hole
  • Grooved End Cap with Eccentric Hole
    • Request a Quote

    Grooved end cap with concentric hole is used to be fitted onto the end of a pipe with a threaded eccentric hole for drainage. This grooved end cap provides an economic and efficient method of reducing grooved piping systems.

    Certification
    Certification
    Certification
    Certification
    Key Specifications
    • Available sizes
      Available sizes: 1 inch~12 inch |DN25~DN300
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM / UL /CE certified
    • Coating
      Coating: epoxy / galvanized
    • Color
      Color: red/orange/white etc.
    Specifications

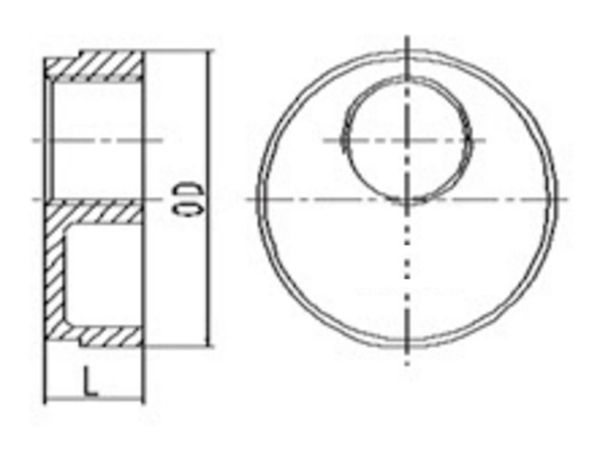

    Nominal Size Pipe OD Dimensions
    mm/in mm/in L mm/in
    50 ×25 / 2×1 60.3 ×33.7 / 2.375×1.315 25 / 0.98
    65 ×25 / 2 1/2×1 73 ×33.7 / 2.875×1.315 25 / 0.98
    65 ×25 / 2 1/2×1 76.1 ×33.7 / 3×1.315 25 / 0.98
    80 ×25 / 3×1 88.9 ×33.7 / 3.5×1.315 25 / 0.98
    100 ×25 / 4×1 108 ×33.7 / 4.25×1.315 25 / 0.98
    100 ×25 / 4×1 114.3×33.7 / 4.5×1.315 26 / 1.02
    125 ×25 / 5×1 133 ×33.7 / 5.25×1.315 25 / 0.98
    125 ×25 / 5×1 139.7 ×33.7 / 5.5×1.315 26 / 1.02
    125 ×25 / 5×1 141.3 ×33.7 / 5.563×1.315 26 / 1.02
    150 ×25 / 6×1 159 ×33.7 / 6.25×1.315 26 / 1.02
    150 ×25 / 6×1 165.1 ×33.7 / 6.5×1.315 26 / 1.02
    150 ×25 / 6×1 168.3 ×33.7 / 6.625×1.315 26 / 1.02
    200 ×25 / 8×1 219.1 ×33.7 / 8.625×1.315 30 / 1.18
    250 ×25 / 10×1 273 ×33.7 / 10.75×1.315 32 / 1.26
