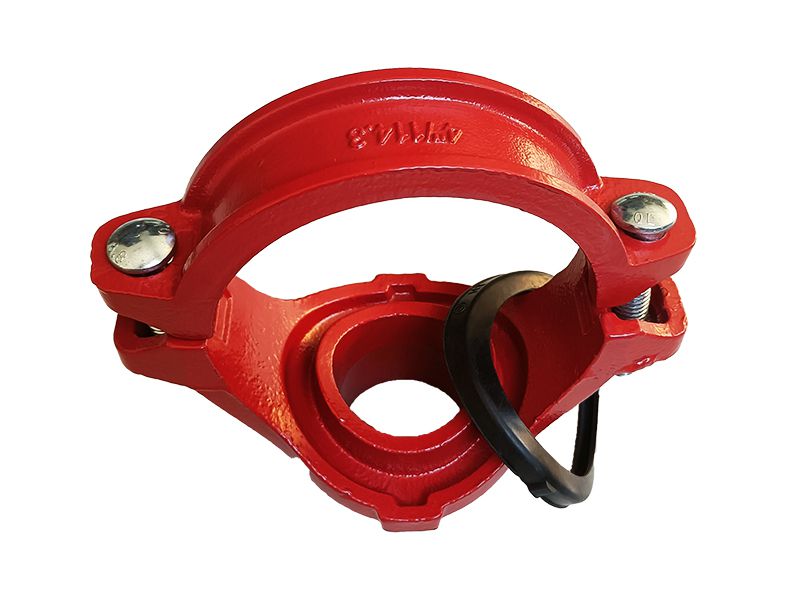

    Mechanical tee grooved outlet consist of upper and lower plates, a gasket, and bolts/nuts, providing a simple and fast method for branch connection. The self-sealing structure of the gasket ensures permanent sealing. During field operations, mechanical tees can be precisely installed on the pipeline to ensure the accuracy of the branch outlet connection.

    Features
    • Mechanical tee grooved outlet provides an additional grooved outlet in existing piping.
    • For new construction, using of a mechanical tee eliminates the need for reducing tees.
    • The mechanical tee may be easily converted into a cross when necessary.
    Recommended Applications

    Mechanical tee grooved outlet are suitable for grooved piping systems, such as fire protection systems and sprinkler piping systems.

    Certification
    Certification
    Certification
    Certification
    Key Specifications
    • Available sizes
      Available sizes: 2×1 inch~10×4 inch |DN50×25~DN250×65
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM/UL/CE certified
    • Coating
      Coating: epoxy/galvanized
    • Material
      Material: ductile iron

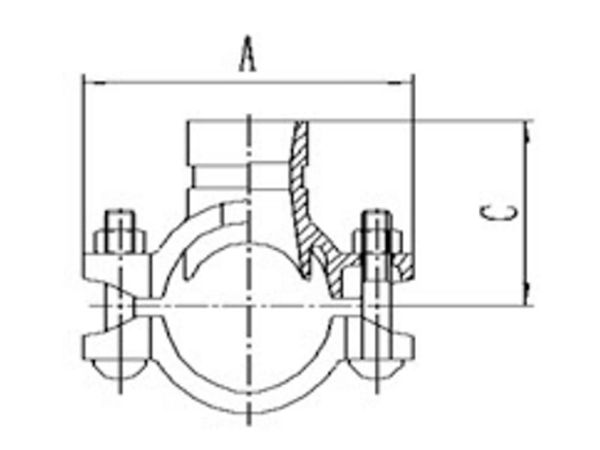

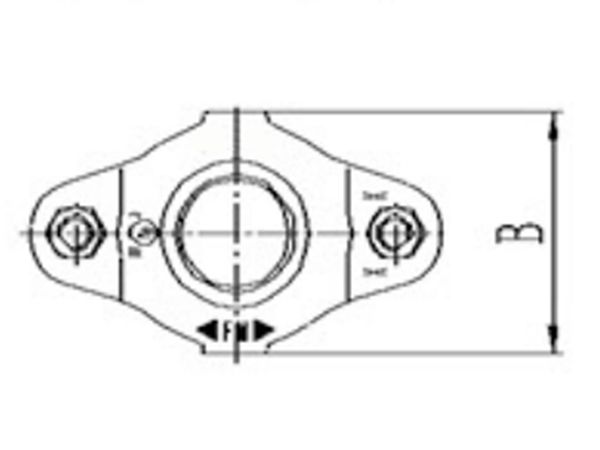

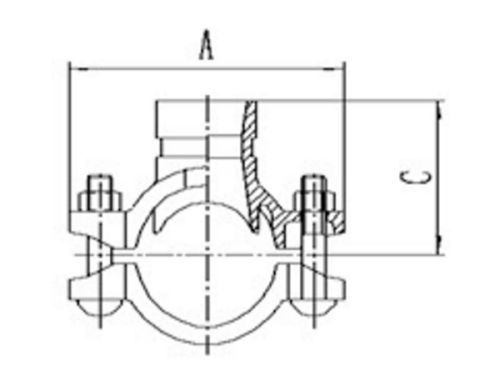

    Specifications
    Nominal Size Pipe OD. Hole Dia Dimensions Bolt Size
    mm/in mm/in   A mm B mm C mm D mm
    50x25 / 2x1 60x33.7 / 2.375 x 1.33 38 / 1.496 118 / 4.65 74 / 2.91 68 / 2.68 40 / 1.57 M10x55-2
    50x32 / 2x1 1/4 60.3x42.4 2.375 x 1.660 45 / 1.77 118 / 4.65 74 / 2.91 68 / 2.68 40 / 1.57 M10x55-2
    50x40 / 2x1 1/2 60.3x48.3 2.375 x 1.900 45 / 1.77 118 / 4.65 74 / 2.91 68 / 5 2.7 40 / 1.57 M10x55-2
    65x25 / 2 1/2x1 73x33.7 / 2.874 x 1.33 38 / 1.496 132 / 5.197 74 / 2.91 75 / 2.953 47 / 1.850 M12×70-2
    65x32 / 2 1/2x1 1/4 73x42.4 / 2.874 x1.660 51 / 2.01 132 / 5.197 84 / 3.31 75 / 2.953 47 / 1.850 M12×70-2
    65x40 / 2 1/2x1 1/2 73x48.3 / 2.874 x 1.900 51 / 2.01 132 / 5.197 84 / 3.31 75 / 2.953 47 / 1.850 M12×70-2
    65x32 / 2 1/2x1 1/4 76.1 x42.4 3.000x1.660 51 / 2.01 135 / 5.31 84 / 3.31 78 / 3.07 48 / 1.89 M 12x70-2
    65x40 / 2 1/2x1 1/2 76.1x48.3 3.000x1 900 51 / 2.01 135 / 5.31 84 / 3.31 78 / 3.07 48 / 1.89 M12x70-2
    65x50 / 2 1/2x2 76x60 / 3.000x2.375 51 / 2.01 135 / 5.31 84 / 3.31 78 / 3.07 48 / 1.89 M12x70-2
    80x25 / 3x1 89x33 / 3.500x1.33 38 / 1.496 146 / 5.75 74 / 2.91 83 / 3.268 55 / 2.17 M12x70-2
    80x32 / 3x1 1/4 88.9x42.4 3.500x1.660 51 / 2.01 146 / 5.75 86 / 3.39 85 / 3.35 55 / 2.17 M12x70-2
    80x40 / 3x1 1/2 88.9x48.3 3.500x1 900 51 / 2.01 146 / 5.75 86 / 3.39 85 / 3.35 55 / 2.17 M12x70-2
    80x50 / 3x2 88.9 x 60.3 3.500 x 2.375 64 / 2.52 146 / 5.75 96 / 3.78 85 / 3.35 55 / 2.17 M12x70-2
    80x50 / 3x2 1/2 88.9x73 / 3.500x3.000 64 / 2.52 146 / 5.75 96 / 3.78 85 / 3.35 55 / 2.17 M12x70-2
    100x25 / 4x 1 114x33 / 4.500 x 1.33 38 / 1.496 178 / 7.01 74 / 2.91 98 / 3.86 69 / 2.72 M12x75-2
    100x32 / 4x 1 1/4 114.3x42.4 4.500 x 1.660 51 / 2.01 178 / 7.01 86 / 3.39 98 / 3.86 69 / 2.72 M12x75-2
    100x40 / 4x1 1/2 114.3x48.3 4.500 x 1.900 51 / 2.01 178 / 7.01 86 / 3.39 98 / 3.86 69 / 2.72 M12x75-2
    100x50 / 4x2 114.3x60.3 4.500x2.375 64 / 2.52 178 / 7.01 100 / 3.94 98 / 3.86 69 / 2.72 M12x75-2
    100x65 / 4x2 1/2 114.3x73.0 4.500x2.875 70 / 2.76 178 / 7.01 106 / 4.17 98 / 3.86 69 / 2.72 M12x75-2
    100x65 / 4x2 1/2 114.3x76.1 4.500 x 3.000 70 / 2.76 178 / 7.01 106 / 4.17 98 / 3.86 69 / 2.72 M12x75-2
    100x80 / 4x3 114.3x88.9 / 4.500 x 3.500 89 / 3.5 178 / 7.01 124 / 4.882 99 / 3.898 69 / 2.72 M12x75-2
    125x40 / 5x1 1/2 139.7x48.3 5.500x1.900 51 / 2.01 213 / 8.39 86 / 3.39 110 / 4.33 81 / 3.19 M16x85-2
    125x50 / 5x2 139.7x60.3 5.500 x 2375 64 / 2.52 213 / 8.39 102 / 4.02 110 / 4.33 81 / 3.19 M16x85-2
    125x65 / 5x2 1/2 139.7x76.1 5.500x3.000 70 / 2.76 213 / 8.39 108 / 4.25 110 / 4.33 81 / 3.19 M16x85-2
    125x80 / 5x3 139.7x88.9 / 5.500x3.500 89 / 3.5 213 / 8.39 124 / 4.882 110 / 4.33 81 / 3.19 M16x85-2
    150x50 / 6x2 165.1x60.3 / 6.500x2.375 64 / 2.52 238 / 9.37 100 / 3.94 125 / 4.92 95 / 3.74 M16x 105-2
    150x65 / 6x2 1/2 165 1x73.0 / 6.500x2.875 70 / 2.76 238 / 9.37 108 / 4.25 129 / 5.08 95 / 3.74 M16x 105-2
    150x65 / 6x2 1/2 165.1 x 76.1 / 6.500 x 3.000 70 / 2.76 238 / 9.37 113 / 4.45 122 / 4.8 95 / 3.74 M16x 105-2
    150x80 / 6x3 165.1x88.9 / 6.500 x 3.5 89 / 3.5 242 / 9.528 128 / 5.039 124 / 4.882 93 / 3.661 M16x 105-2
    150x32 / 6x1 1/4 168.3x42.4 / 6.625x1 660 51 / 2.01 255 / 10.04 88 / 3.46 123 / 4.84 96 / 3.78 M16x 105-2
    150x40 / 6x1 1/2 168.3x48.3 / 6.625x1.900 51 / 2.01 255 / 10.04 88 / 3.46 123 / 4.84 96 / 3.78 M16x 105-2
    150x50 / 6x2 168.3x60.3 / 6.625x2.375 64 / 2.52 255 / 10.04 102 / 4.02 123 / 4.84 96 / 3.78 M16x 105-2
    150x65 / 6x2 1/2 168.3x73.0 / 6.625x2.875 70 / 2.76 255 / 10.04 108 / 4.25 127 / 5.000 96 / 3.78 M16x 105-2
    200 x 50 / 8x2 219.1x60.3 / 8.625x2.375 64 / 2.52 310 / 12.2 104 / 4.09 153 / 6.02 124 / 4.88 M20x 115-2
    200 x 65 / 8x2 1/2 219.1x73.0 / 8.625x2.875 70 / 2.76 310 / 12.2 108 / 4.25 153 / 6.02 124 / 4.88 M20x 115-2
    200x65 / 8x2 1/2 219 1 x 76.1 / 8.625 x 3.000 70 / 2.76 310 / 12.2 115 / 4.53 152 / 5.98 124 / 4.88 M20x115-2
    200x80 / 8x3 219.1x88.9 / 8.625x3.500 89 / 3.5 310 / 12.2 127 / 5 152 / 5.98 124 / 4.88 M20x 115-2
    What are the advantages of using grooved pipe fittings in outdoor pipeline installation or long-distance pipeline installation?
    Unlike traditional pipeline connections, grooved pipe fittings can be used in outdoor pipeline systems or long-distance pipeline installations without considering weather limitations, the need of electric tools or related power support. Besides, the installation of grooved pipe fittings is easy and highly efficient.
    What are the industrial applications of grooved fittings and mechanical couplings?
    The grooved fittings are commonly used in HVAC piping systems, fire sprinkler piping systems, wastewater treatment plants, and oil and gas transmission systems.
