Grooved Reducing Tee
  • Grooved Reducing Tee
  • Grooved Reducing Tee
    • Request a Quote

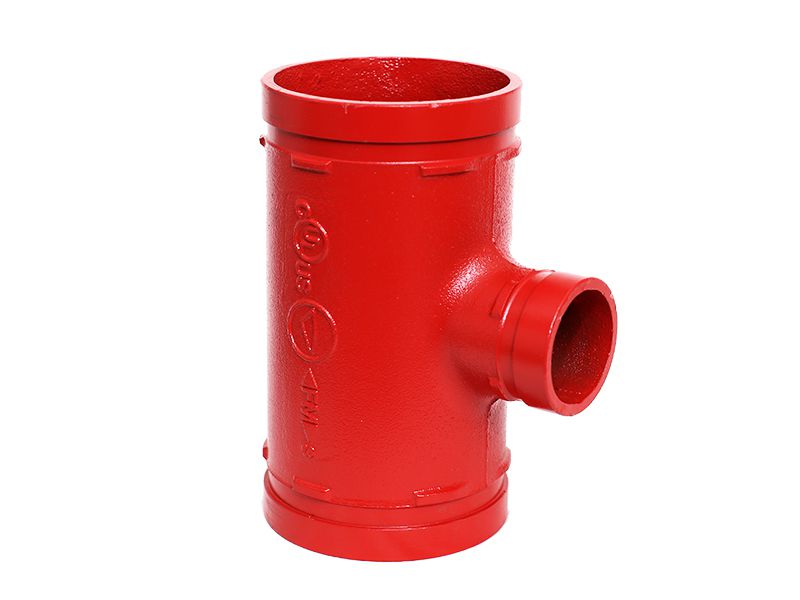

    Grooved reducing tee, named for its T-shaped configuration, has a branch outlet with a different size from the main outlet. Each end of the tee has a groove, allowing it to be quickly and easily connected to the pipeline using couplings or fittings.

    Recommended Applications
    • Grooved reducing tee is suitable for piping systems in industries such as petroleum, chemical, oil, natural gas, and urban construction, like heating pipeline systems, drainage and water supply systems, and more.
    • Connects pipe, provides changes in direction, and adapts to sizes or components.
    Certification
    Certification
    Certification
    Certification
    Key Specifications
    • Available sizes
      Available sizes: 2×1 inch~10×4 inch |DN50×25~DN250×65
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM/UL/CE certified
    • Coating
      Coating: epoxy/galvanized
    Specifications

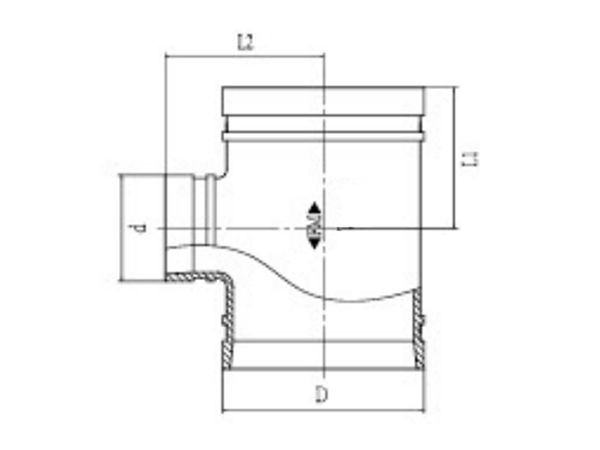

    Nominal size mm/in Pipe OD. Dimensions
    mm/in L1mm/in L2mm/in
    50x25 / 2x1 60.3 x 33.7 / 2.375x1.315 70 / 2.76 70 / 2.76
    50x32 / 2x1 1/4 60.3 x 42.4 / 2.375x1.660 70 / 2.76 70 / 2.76
    50x40 / 2x1 1/2 60.3 x 48.3 / 2.375 x 1.900 70 / 2.76 70 / 2.76
    65x32 / 2 1/2x1 1/4 73.0 x 42.4 / 2.875x1.660 76 / 2.99 76 / 2.99
    65x40 / 2 1/2x1 1/2 73.0x48.3 / 2.875x1.900 76 / 2.99 76 / 2.99
    65x50 / 2 1/2 x 2 73.0 x 60.3 / 2.875x2.375 76 / 2.99 76 / 2.99
    65x32 / 2 1/2X1 1/4 76.1 x42.4 / 3.000x1.660 76 / 2.99 76 / 2.99
    65x40 / 2 1/2X1 1/2 76.1x48.3 / 3.000x1.900 76 / 2.99 76 / 2.99
    65x50 / 2 1/2X2 76.1x60.3 / 3.000x2.375 95 / 3.74 95 / 3.74
    80x50 / 3x2 88.9 x 60.3 / 3.500x2.375 108 / 4.25 108 / 4.25
    80x65 / 3x2 1/2 88.9 x 76.1 / 3 500x3000 108 / 4.25 108 / 4.25
    100x65 / 4x2 1/2 108.0x76.1 / 4.250 x 3.000 127 / 5 127 / 5
    100x80 / 4x3 108.0 x 88.9 / 4.250 x 3.500 127 / 5 127 / 5
    100x50 / 4x2 114.3x60.3 / 4.500x2.375 127 / 5 127 / 5
    100x65 / 4x2 1/2 114.3x76.1 / 4.500 x 3.000 127 / 5 127 / 5
    100x80 / 4x3 114.3x88.9 / 4.500x3.500 127 / 5 127 / 5
    125x65 / 5x2 1/2 133.0 x 76.1 / 5.250 x 3.000 122 / 4.8 122 / 4.8
    125x 100 / 5x4 133.0x108.0 / 5 250 x 4 250 122 / 4.8 122 / 4.8
    125x50 / 5x2 139.7x60.3 / 5.500 x 2.375 110 / 4.33 110 / 4.33
    125x65 / 5x2 1/2 139.7 x 76.1 / 5.500 x 3.000 110 / 4.33 110 / 4.33
    125x80 / 5x3 139.7 x 88.9 / 5.500 x 3.500 110 / 4.33 110 / 4.33
    125x100 / 5x4 139.7x114.3 / 5.500 x 4.500 110 / 4.33 110 / 4.33
    150x65 / 6x2 1/2 159.0x76.1 / 6.250 x 3.000 122 / 4.8 122 / 4.8
    150x80 / 6x3 159.0x88.9 / 6.250 x 3.500 122 / 4.8 122 / 4.8
    150x100 / 6x4 159.0x108.0 / 6.250 x 4.250 122 / 4.8 122 / 4.8
    150x 100 / 6x4 159.0 x 114.3 / 6.250 x 4.500 122 / 4.8 122 / 4.8
    150x50 / 6x2 165.1 x 60.3 / 6.500x2.375 165 / 6.5 165 / 6.5
    150x65 / 6x2 1/2 165.1 x 76.1 / 6.500 x 3.000 165 / 6.5 165 / 6.5
    150x80 / 6x3 165.1 x88.9 / 6.500x2.376 165 / 6.5 165 / 6.5
    150x50 / 6x2 168.3 x 60.3 / 6.625 x 2.376 140 / 5.51 140 / 5.51
    150x65 / 6x2 1/2 168.3x73 / 6.625 x 2.874 140.00 140.00
    150x65 / 6x2 1/2 168.3 x 76.1 / 6.625x3.000 140 / 5.51 140 / 5.51
    150x80 / 6x3 168.3 x 88.9 / 6.625 x 3.500 140 / 5.51 140 / 5.51
    150x100 / 6x4 168.3x114.3 / 6.625 x 4.500 140 / 5.51 140 / 5.51
    200 x 65 / 8 x 2 1/2 219.1 x 76.1 / 8.625 x 3.000 197 / 7.76 197 / 7.76
    200x80 / 8x3 219.1 x88.9 / 8.625 x 3.500 197 / 7.76 197 / 7.76
    200x100 / 8x4 219.1 x 114.3 / 8.625 x 4.500 197 / 7.76 197 / 7.76
    200x125 / 8x5 2191x139.7 / 8.625 x 5.500 197 / 7.76 197 / 7.76
    200x150 / 8x6 219.1x166.1 / 8.62S x 6.500 197 / 7.76 197 / 7.76
    200x 150 / 8x6 219.1x168.3 / 8.625 x 6.625 197 / 7.76 197 / 7.76
    250x100 / 10x4 273.0x114.3 / 10.750 x 4.500 229 / 9.02 229 / 9.02
    250x125 / 10x5 273.0 x 139.7 / 10.750x5.500 229 / 9.02 229 / 9.02
    250x 150 / 10x6 273.0 x 165.1 / 10.750x6.500 229 / 9.02 229 / 9.02
    What are the common grooved fittings in a piping system?
    Common grooved fittings used in piping systems include grooved couplings, grooved pipe fittings, and grooved pipe outlets, etc.
    What are the common applications of grooved fittings and couplings?
    These grooved fittings and couplings are commonly used in low-pressure piping systems such as fire sprinkler piping systems, petroleum pipeline transport systems, fluid transport systems in chemical plants, and more.
