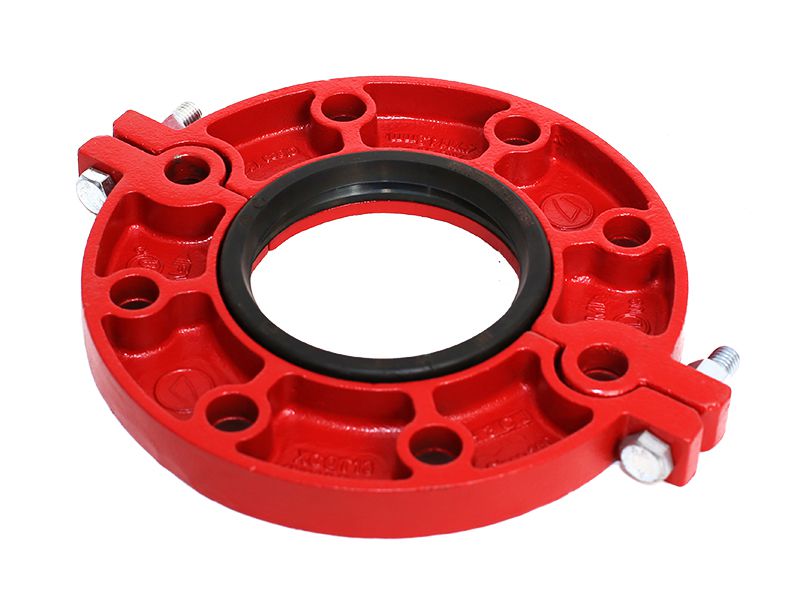

    A grooved split flange enables a direct transition between the flanged component and a grooved pipeline. During installation, the key of the split flange continuously adapts to the groove diameter, ensuring a tight fit against the bottom of the groove, resulting in a sturdy connection.

    Recommended Applications

    Grooved split flanges are primarily used in hydraulic machinery and are often paired with connecting pipes to facilitate efficient fluid flow and reliable connections.

    Certification
    Certification
    Certification
    Certification
    Key Specifications
    • Available sizes
      Available sizes: 1 inch~12 inch |DN25~DN300
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM / UL /CE certified
    • Coating
      Coating: epoxy / galvanized
    • Color
      Color: red/orange/white etc.
    Specifications

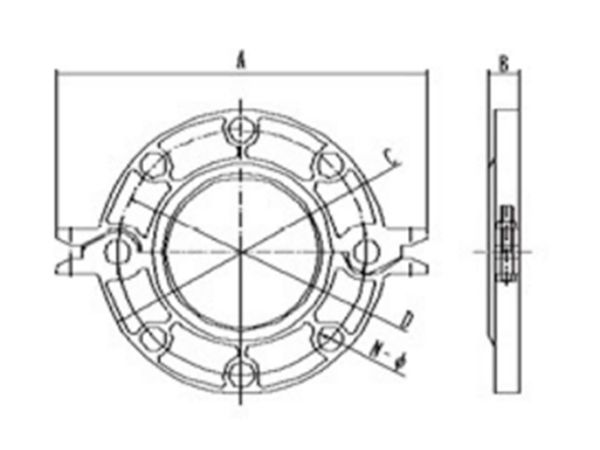

    Nominal Size Pipe OD. Dimensions Bolt / Nut
    mm/in mm/in A mm/in B mm/in C mm/in D mm/in E mm/in No.-Size mm
    40 / 1 1/2 48.3 / 1.9 195 / 7.68 18.5 / 0.73 150 / 5.9 110 / 4.33 45.4 / 1.78 4-Φ16
    50 / 2 60.3 / 2.375 220 / 8.66 18.5 / 0.73 165 / 6.5 125 / 4.92 57.5 / 2.26 4-Φ16
    65 / 2 1/2 76.1 / 3 235 / 9.25 18.5 / 0.73 185 / 7.28 145 / 5.71 72.7 / 2.86 4-Φ16
    80 / 3 88.9 / 3.5 255 / 10.04 18.5 / 0.73 195 / 7.68 160 / 6.3 85.5 / 3.37 8-Φ16
    100 / 4 108 / 4.25 279 / 10.98 18.5 / 0.73 220 / 8.66 180 / 7.09 104.5 / 4.11 8-Φ16
    100 / 4 114.3 / 4.5 279 10.98 18.5 0.73 224 8.82 180 7.09 110.5 4.35 8-Φ16
    125 5 133 5.25 312 12.28 21.5 0.85 250 9.84 210 8.27 129.2 5.08 8-Φ 16
    125 5 139.7 5.5 320 12.6 23 0.91 250 9.84 210 8.27 135.5 5.33 8-Φ 16
    150 6 159 6.25 346 13.62 21.5 0.85 280 11 240 9.45 154.8 6.1 8-Φ20
    150 6 165.1 346 13.62 21.5 0.85 280 11 240 9.45 160.8 6.33 8-Φ20
    6.5
    150 6 168.3 6.625 346 13.62 24 0.94 280 11 240 9.45 164.3 6.47 8-Φ20
    200 8 219.1 8.625 414.3 16.31 30 1.18 340 13.39 295 11.61 214.9 8.46 12-Φ20
    250 10 273 10.75 480 18.9 25.5 1.00 405 15.94 355 13.98 268.9 10.59 12-Φ24
    300 12 323.9 12.75 530.5 20.88 25.5 1 460 18.11 410 16.14 318.9 12.56 12-Φ24
